My2 My4 Relay Nnc68bzl with Test Button and LED Indicator
HomeHome > Products > Relay > My2 My4 Relay Nnc68bzl with Test Button and LED Indicator

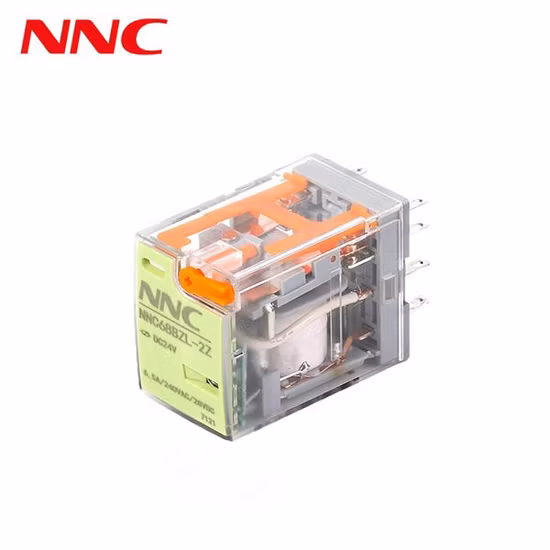

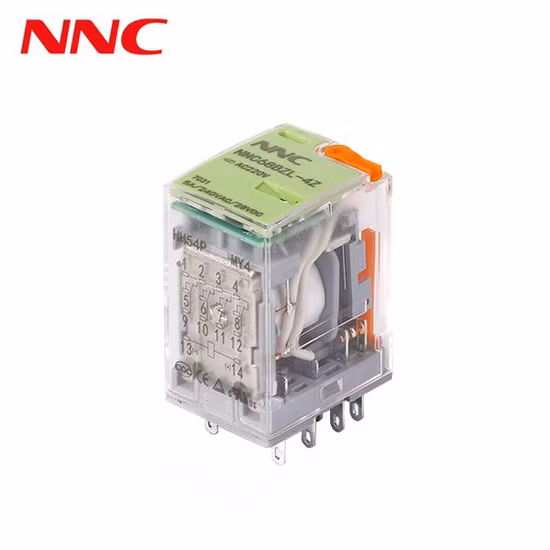

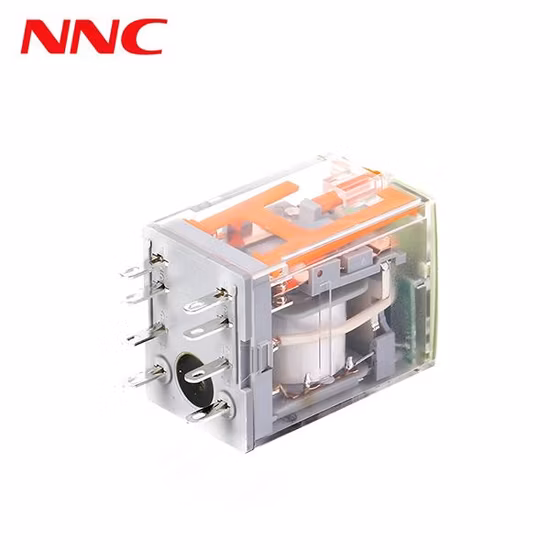

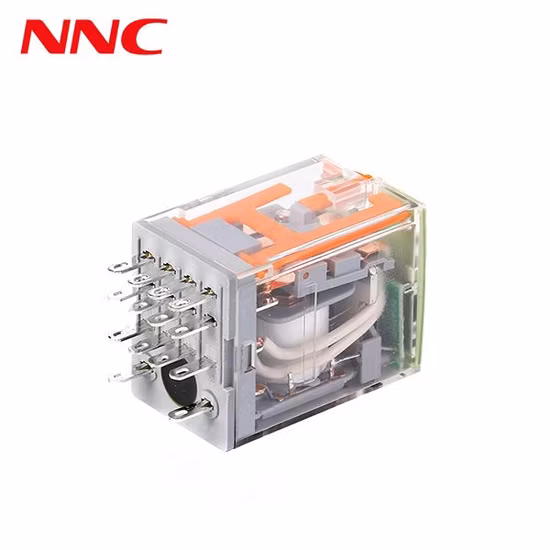

My2 My4 Relay Nnc68bzl with Test Button and LED Indicator

My2 My4 Relay Nnc68bzl with Test Button and LED Indicator

NNC68BZL-2Z 6.5A NNC68BZL-2Z 10A NNC68BZL-4Z 5A Specifacation
Basic Info
Model NO. NNC68BZL
Max.Switching Voltage 240VAC/28VDC
Contact Rating 5A 6.5A 10A
Contact Material AG Alloy(Agsno2; Agcdo)
Certificate CCC,CQC,CE,TUV;UL;RoHS
Contact Form 2z(Dpdt);2h(Dpst-No);2D(Dpst-Nc) 4z(4PDT);4h(4pst-
Transport Package Carton
Specification 27.3mm*21mm*36.2mm
Trademark NNC
Origin China
HS Code 8536490000
Production Capacity 500000PCS/Week
Product Description

My2 My4 Relay Nnc68bzl with Test Button and LED Indicator

NNC68BZL-2Z 6.5A NNC68BZL-2Z 10A NNC68BZL-4Z 5A

Specifacation
Dimension27.3mm*21mm*36.2mm
Contact FeatureForm2Z(DPDT);2H(DPST-NO);2D(DPST-NC)4Z(4PDT);4H(4PST-NO);4D(4PST-NC)
Rated load6.5A/10A5A
Max switching voltage240VAC/28VDC
Contact resistance≤100mΩ
MaterialAg Alloy(AgSnO2)
Electrical life≥1*105
Mechanical life≥1*107
Operate voltage (23ºC)DC:≤75%*Rated voltage, AC:≤80%*Rated voltage
Release voltage (23ºC)DC:≥10%*Rated voltage, AC:≥30%*Rated voltage
Maximum voltage (23ºC)110%*Rated voltage
Coil voltageDC6-220V, AC6-380V (Customize allowed)
Coil powerDC: 0.9W, AC: 1.2VA
Pick-up time≤15ms
Release time≤10ms
Dielectric strengthBetween open contacts of same pole1000VAC for 1min
Between contacts of different pole1000VAC for 1min
Between contacts and coil1500VAC for 1min/4500VAC for 1min
Insulation resistance≥100mΩ(500VDC)
Ambient temperature--40°C ~ 85°C
Ambient humidity45%-85%RH
Atmospheric pressure86-106KPa
Shock resistance10G (sinusoidal half-wave pulse: 11ms)
Vibration resistance10-55Hz (double amplitude: 1.5mm)
InstallationPCB or Socket with DIN Rail or Screw
WeightApprox. 33g/PCSApprox. 35g/PCS
PackingCarton with paper box inside600PCS/Carton, G.W.: 21KG, N.W.: 20KG, Dimension(mm): 330×310×345
