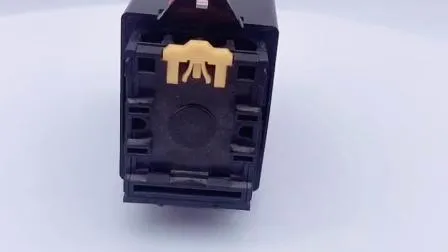

Digital Multi-Function Liquid Level Control Floatless Relay with CE

Basic Info

Model NO.	AFR-1
Type	Electric Parameter Relay
Brand	Winston
Protect Feature	Sealed
Contact Load	Low Power
Antistop	Floatless Relay
Dimensions(mm)	61h *49W * 70d
Connection Diagrams	35b
Ambient Huminity	48~85%Rh
Quality	2 Year Warranty
Transport Package	Export Standard Carton Box or ODM
Specification	CE
Trademark	Winston/OEM/Neutral
Origin	China, Zhejiang, Wenzhou
HS Code	85365000
Production Capacity	10000PCS/Week

Product Description

Specifications:

1.Socket type: PF083A

2.Rated voltage:AC 110V,220V,240V,50/60Hz

3.Indicate operation:two LED's use for two status

4.Contact rated: 5A 250VAC

5.Dielectric strength:1500VAC 50/60Hz, 1MINUTE

6.Consumed power:3.2VA

7.Weight:200g

CLASSIFICATION		FLOATLESS RELAY
MODEL		AFR-1
DIMESIONS(mm)		61H49W70D
SOCKET TYPE		PF083A
SENSING MODE	GENDRAL	AFR-1
	HIGH SENSING	AFR-1H
	LONG DISTANCE	AFR-1L
	LOW DENSITY	AFR-1D
	TWOLINES	AFR-1R
RATED VOLTAGE		AC:110V,220V,240V,50/60HZ
INDICATOR OPERATING		Two LED's use fro two status
OPERATE VOLTAGE		85110%of rated voltage
SECND VOLTAGE		8VAC (except highsensing 24VAC)
OPERATE RESISTANCE		4K MIN.(GENERAL)
RELEASE RESISTANCE		15K MIN.(GENERAL)
RESPONSE TIM		OPERATE:80 MSEC MAX.RELEASE:160MSEC MAX.
CONTACT RATING		5A,250VAC(RESISTIVELOAD)
LEGTH OF CABLE		1KMMAX.(GENERAL)
LIFE	MECHANICAL	5106TIMES MIN
	ELECTRICAL	105 times min
INSULATION RESISTANCE		100M (DC 500V)MIN
DIELECTRIC STRENGTH		1500VAC,50/60HZ,FOR 1MINUTE
CONSUMED POWER		3.2VA
AMBIENT TEMPERATURE		-10+55
AMBIENT HUMIDITY		4585%RH
WEIGHT		200g
